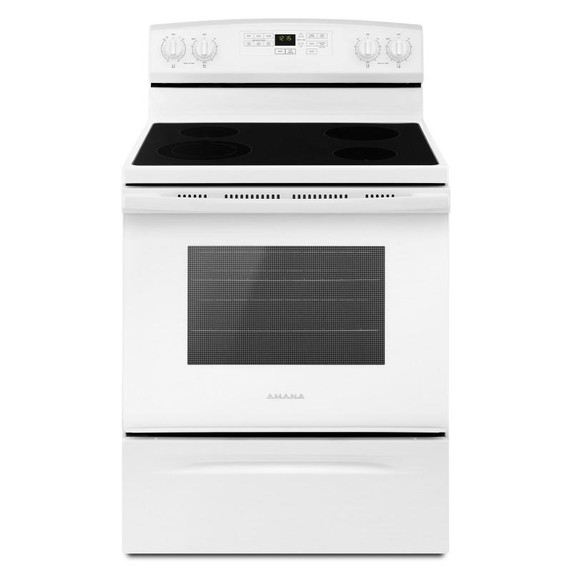

30-inch Amana® Electric Range with Self-Clean Option YAER6603SFW
Specifications
Country Of OriginUSA
Dishwasher SafeNo
Optional AccessoriesW10355051B
Product To Product Pairs
Extended Service Plan ParentEW04IW4Y, EW04IW1Y, EW04IW2Y
Electrical
Volts120
Power Cord IncludedYes
Amps40
Certifications
ULYes
CULYes
Energy Rating Kwh Year532
Exterior
Handle ColorStainless Steel
Handle TypeTowel Bar
Door RemovableYes
Drawer TypeStorage Drawer
Cooktop Details
Left Front Element Burner TypeDual
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop Element StyleCeran
Left Front Element Burner Size9in./6in.
Left Rear Element Burner Power1200W
Left Rear Element Burner Size6in.
Number Of Cooking Element Burners4
Right Front Element Burner TypeStandard Radiant
Cooktop Control LocationBackguard
Right Front Element Burner Size6in.
Right Rear Element Burner Size8in.
Left Front Element Burner Power3000W/1400W
Left Rear Element Burner TypeStandard Radiant
Right Rear Element Burner TypeStandard Radiant
Right Front Element Burner Power1200W
Right Rear Element Burner Power1800W
Features
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
LP ConvertibleNo
Natural Gas ConvertibleNo
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Details
Broiler LocationTop of Oven
Cooktop Surface MaterialPorcelain Coated Steel
Oven Cleaning TypeSelf-Clean
Oven Light Switch LocationOven Control
Interior ColorGrey
Number Of Oven Racks2
Oven Cooking SystemThermal
Number Of Rack Guides5
Bake Element Power2400W
Broiler Element Power3400W
Hidden Bake ElementNo
Number Of Oven Lights1
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent
Oven Control TypeElectronic Touch
Oven Control Knob ColorWhite
Oven Control LocationRear Control
Convection Element TypeNone
Oven Rack TypeStandard
Convection FunctionsNo
Configuration and Overview
Fuel TypeElectric
Description
Size In30
Range TypeFreestanding
Controls
Knob TypePlastic
Electronic Display TypeLED
Knob ColorBlack Stainless
Energy
Annual Energy Usage Kwh532
Carton Depth29.0"
Carton Height48.75"
Carton Width32.0"
Depth Closed Excluding Handles25.31"
Depth With Door Open 90 Degree46.69"
Depth27.75"
Gross Weight187.0 lbs.
Height46.88"
Maximum Height47.88"
Minimum Height46.88"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Capacity FT3 (cubic feet)4.8
