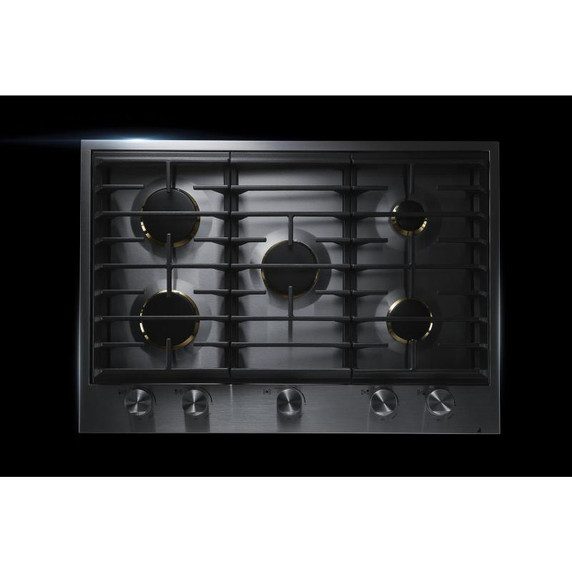

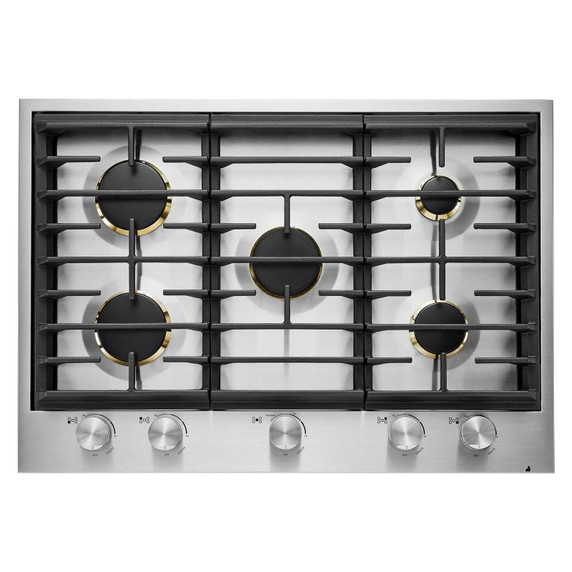

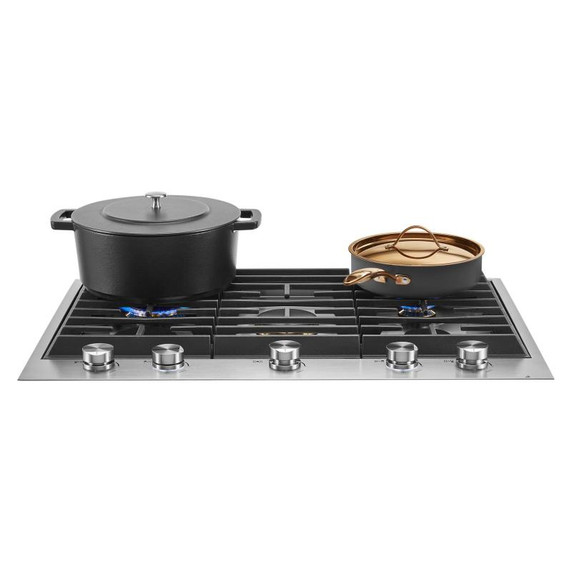

Jennair® Euro-Style 30" 5-Burner Gas Cooktop JGC3530GS
JennAir Luxury Redefined Event, November 1 - December 31, 2024. Save 15% when you purchase 2 or 3 qualifying JennAir® products. Save 20% when you purchase 4 or more qualifying JennAir® products!
20,000 BTU Dual-Stacked PowerBurnerThe most powerful cooktop burner offered by Jenn-Air, the 20,000 BTU dual-stacked PowerBurner can sear, create a rapid boil or achieve high heat for wok cooking, and can reach an ultra-low 700 BTUs that makes it possible to melt chocolate or butter without scorching.

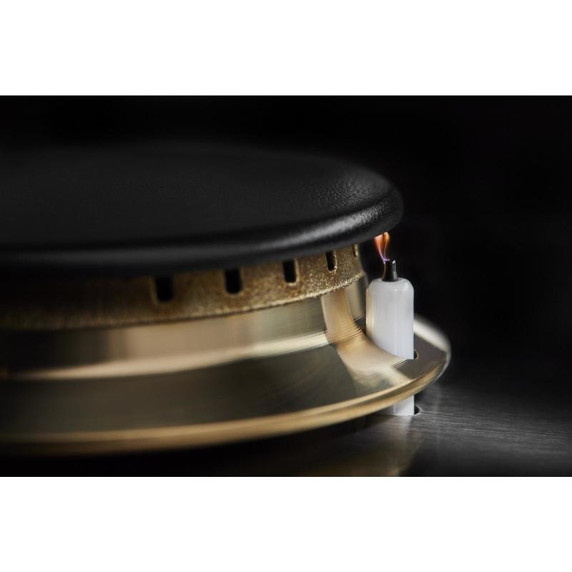

Single Point Electronic Ignition and Flame-Sensing™ Re-ignitionIf the flame is accidentally blown out by a draft, a spark occurs that automatically re-ignites the extinguished burner.
6,000 BTU Simmer Burner with Melt CapWith a power output ranging from 6,000 BTUs to below 1,000 BTUs, this simmer burner gives you maximum control while simmering sauces and melting delicate ingredients like chocolate and butter.

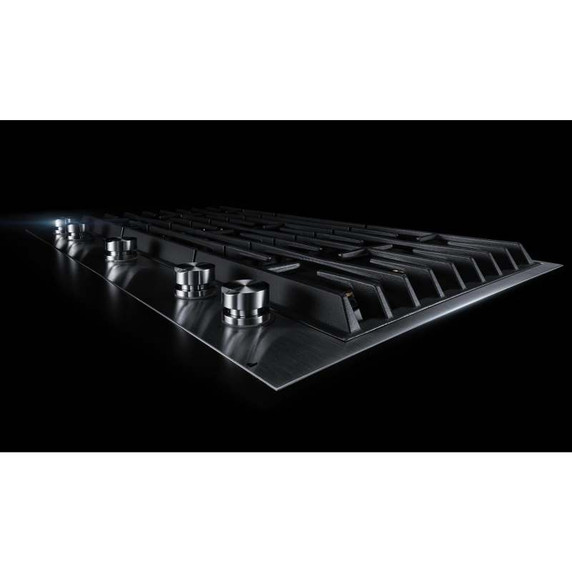

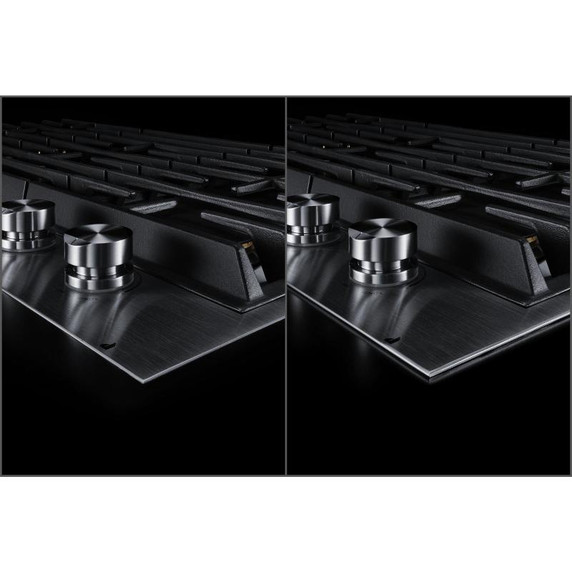

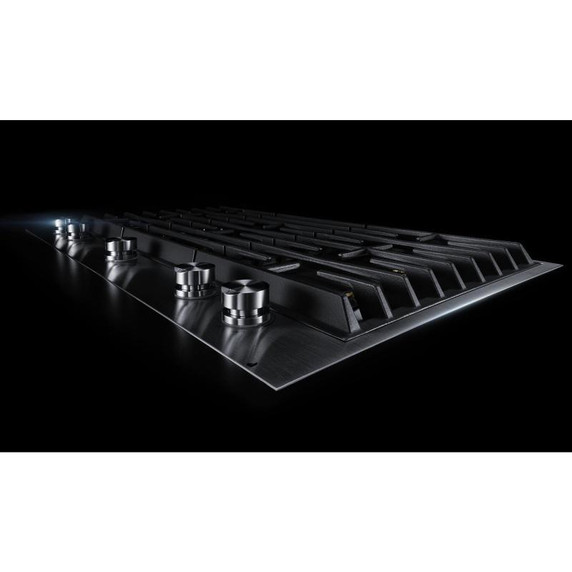

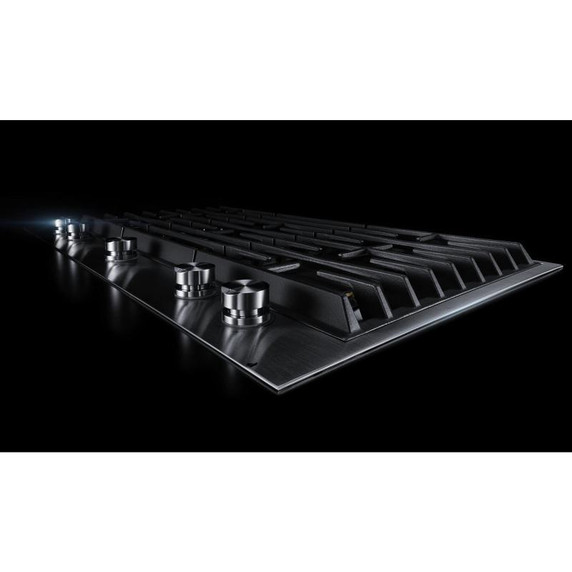

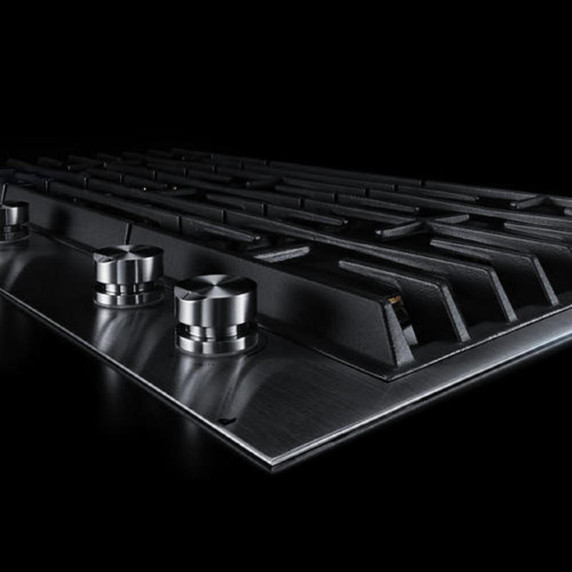

Low-Profile DesignWith an extremely low profile, you can have a minimal look —nearly flush with the countertop — for an integrated transition to the cooktop.

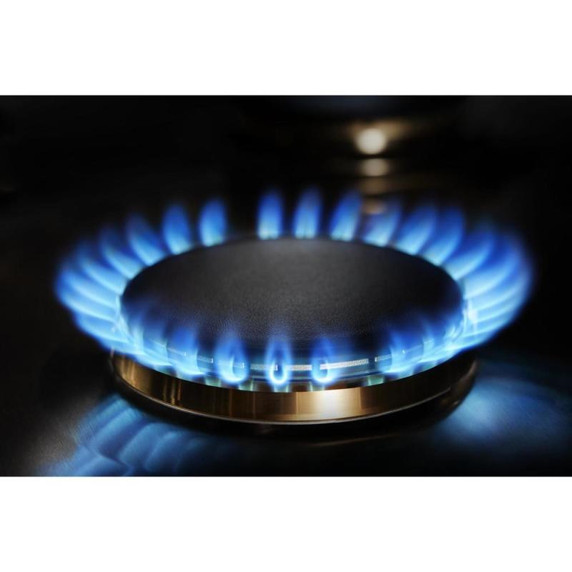

Brass Burners with Removable BaseElegant brass burners effectively direct heat for desired cooking results and can be removed for easy cleaning.
White LED Burner IndicatorWhite indicator light glows indicating when a burner is on, providing a modern look and a convenient reminder for cooks.
Controls
Control TypeManual
Control LocationFront
Knob TypeMetal
Electrical
Amps15
Configuration and Overview
Fuel TypeGas
Design Type
Design ExpressionStainless Steel
Specifications
Country Of OriginUSA
Product To Product Pairs
Extended Service Plan ParentEW08IW1Y, EW08IW4Y, EW08IW2Y
Features
Hot Surface Indicator LightNo
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
LP ConvertibleYes - Kit Included
Power BoostNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Certifications
ULYes
ADA CompliantYes
Description
Size In30
Cooktop TypeTraditional
Combinations With OvenJJW2424; JJW2427; JJW2430; JJW3430; JJW6024
Cooktop Details
Center Front Element Burner Power20000BTU
Cooktop Element StyleSealed Burners
Left Front Element Burner Power12000BTU
Number Of Cooking Element Burners5
Left Rear Element Burner Power12000BTU
Right Front Element Burner Power9000BTU
Right Rear Element Burner Power6000BTU
Depth21.0"
Height4.19"
Net Weight0.0 lbs.
Width30.0"

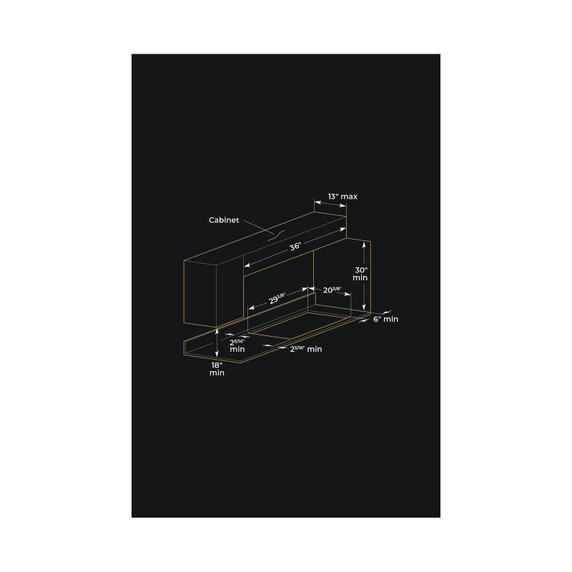

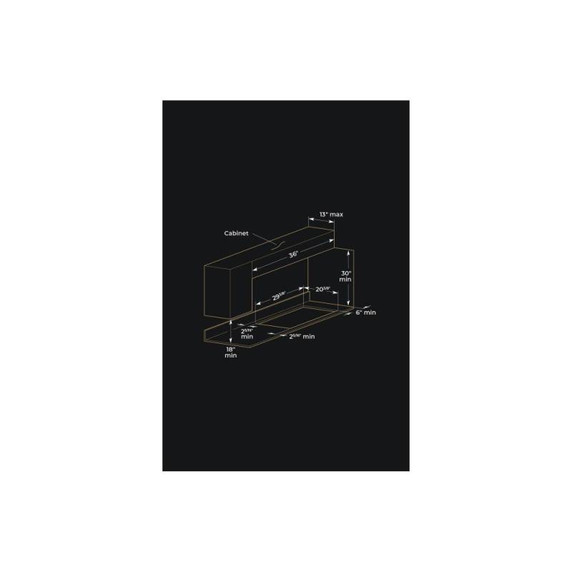

Cutout Depth20.38"
Cutout Width29.38"
Carton Depth Inch25.25
Carton Height Inch9.0
Carton Width Inch38.5
