Country Of OriginUSA
Product To Product Pairs
Optional AccessoriesW10620783, W10355051B, W10177003
Extended Service Plan ParentEW08IW1Y, EW08IW2Y, EW08IW4Y
Hz60
Power Cord IncludedNo
Amps40
Volts220
ULYes
ADA CompliantNo
Right Rear Element Burner TypeDual
Cooktop Element StyleCeran
Left Rear Element Burner Size6in.

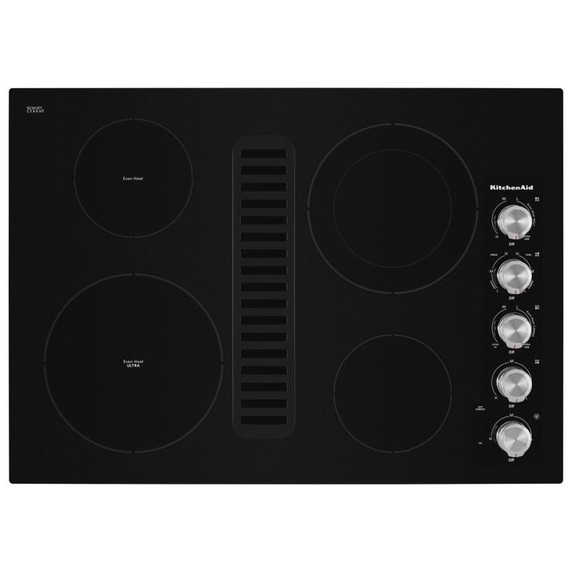

Number Of Cooking Element Burners4
Right Front Element Burner Size6in.
Right Front Element Burner TypeStandard
Left Rear Element Burner Power1300W
Left Front Element Burner Power3200W
Left Front Element Burner Size10in.
Left Front Element Burner TypeEven-Heat™ Ultra
Left Rear Element Burner TypeEven-Heat™
Right Front Element Burner Power1200W
Right Rear Element Burner Power3000W/1400W
Right Rear Element Burner Size9in./6in.
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Digital DisplayNo
Power BoostNo

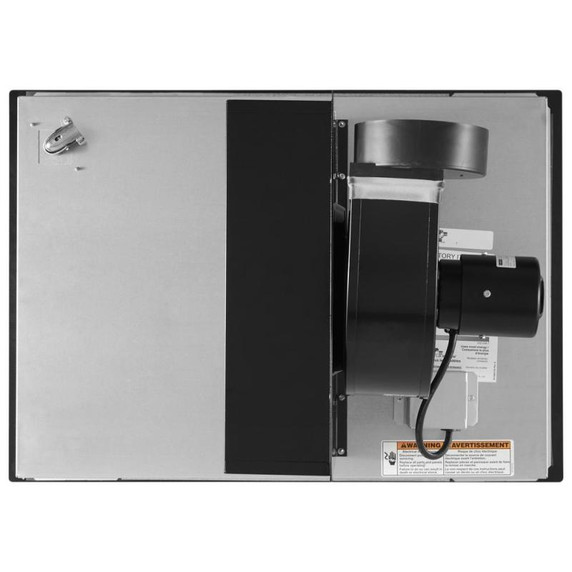

Downdraft VentYes
Installs Over Built In OvenNo
Fuel TypeElectric
Size In30

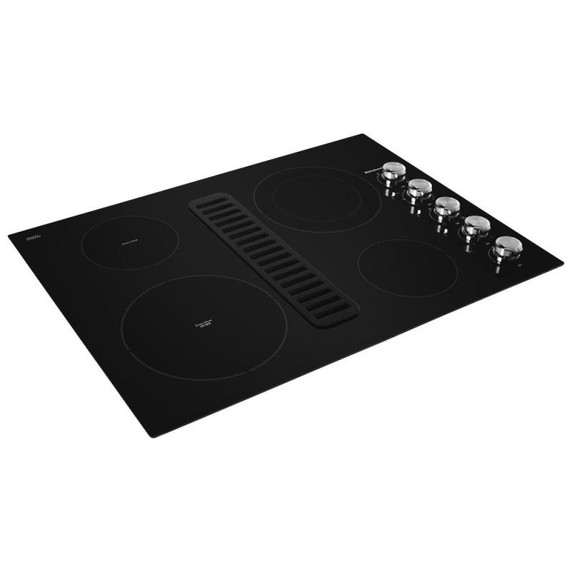

Cooktop TypeDowndraft
Control TypeManual

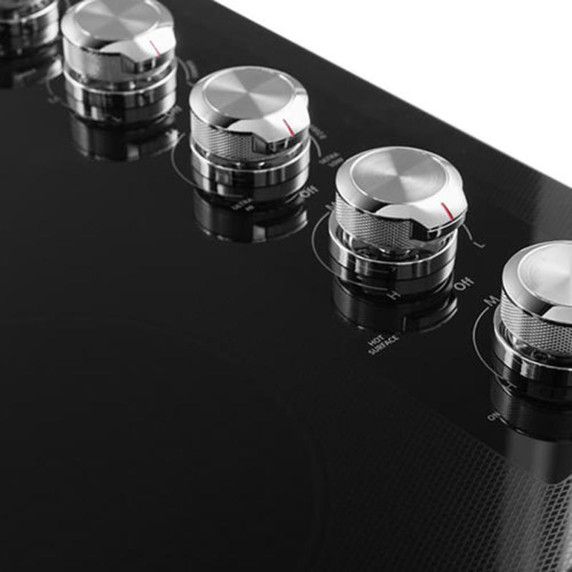

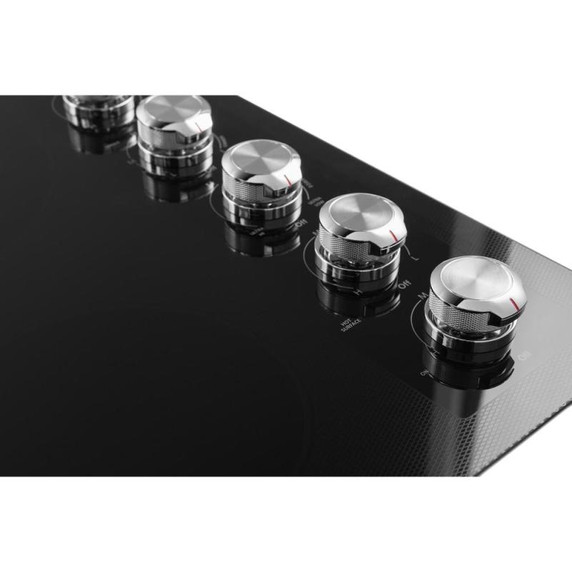

Knob TypeMetal
Control LocationSide
Cfm Motor Class300
Kad CooktopCookshield Finish; Downdraft Ventilation; Even-Heat Melt Burner

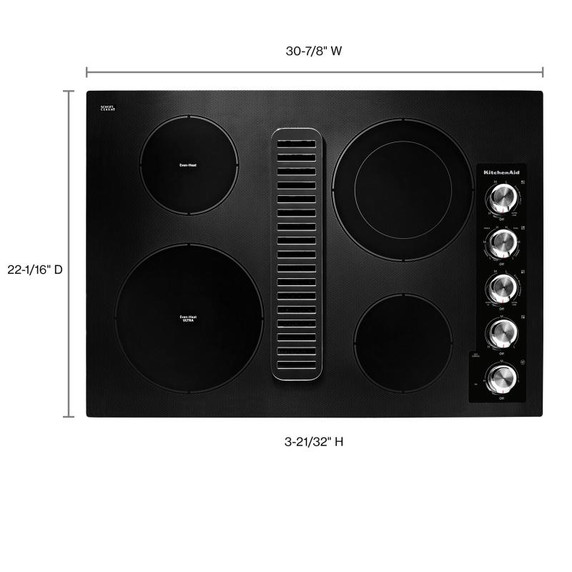

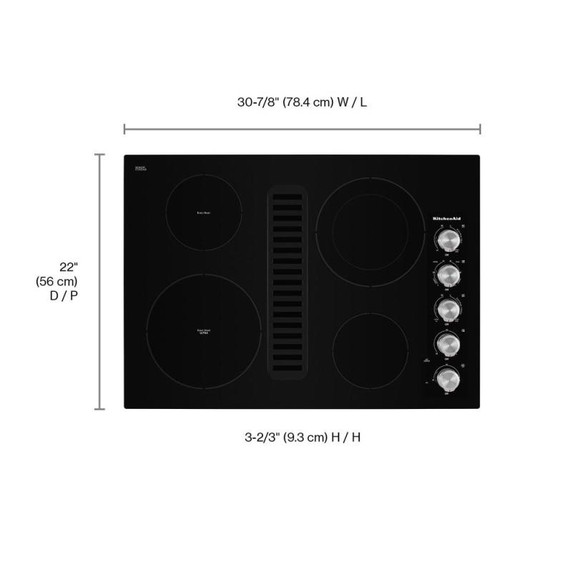

Depth22.06"
Height3.63"
Maximum Height18.75"
Net Weight50.0 lbs.
Width30.88"
Cutout Depth21.13"
Cutout Width28.75"
Carton Depth Inch26.38
Carton Height Inch23.78
Carton Width Inch35.12
