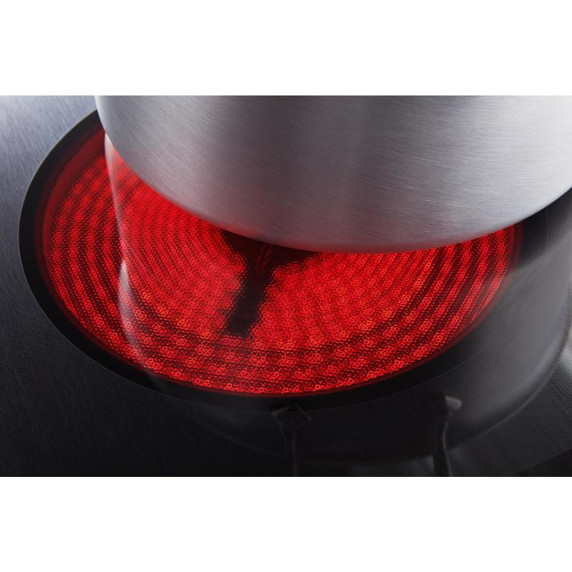

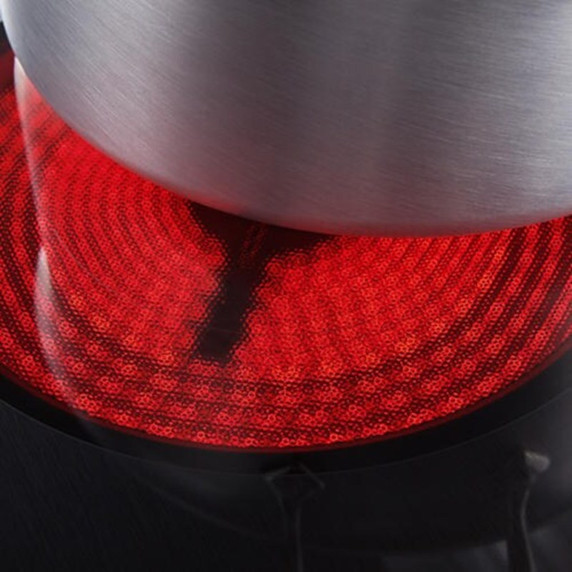

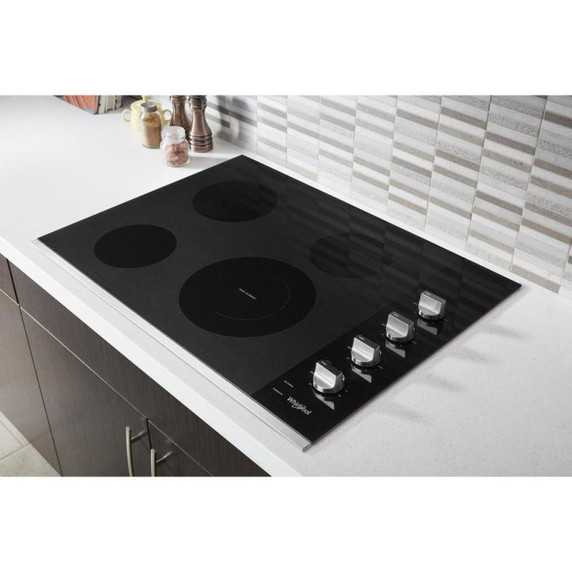

FlexHeat™ Dual Radiant ElementGet two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.
Easy-Wipe Ceramic Glass CooktopWiping up spills is simple with the easy-to-clean cooktop.
30 & 40 Amp InstallationProperly install with either a 30 or 40 amp hookup, so there's no need to rewire.
Hot Surface Indicator LightSee when the cooktop's still hot to the touch, even after it's been turned off, with a light that lets you know.

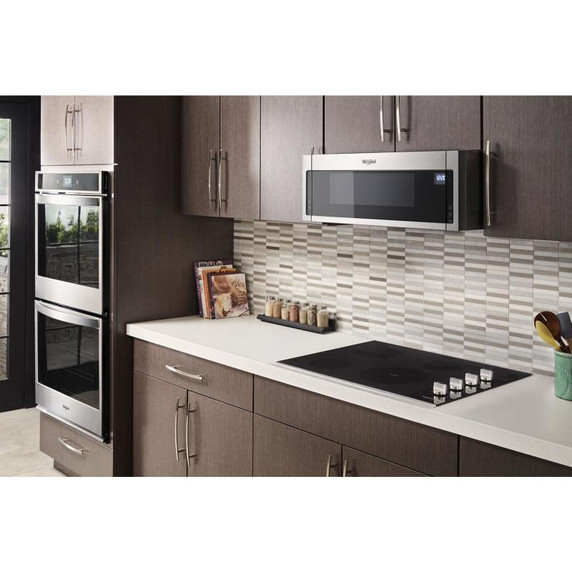

Wall Oven CompatibleInstall this cooktop to work with a wall oven or on its own for added flexibility.
8" Extra ElementCook small dishes like sides and sauces on the 8" extra element.
6" Extra ElementCook small dishes like sides and sauces on the 6" extra element.
ADA compliantThis cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.

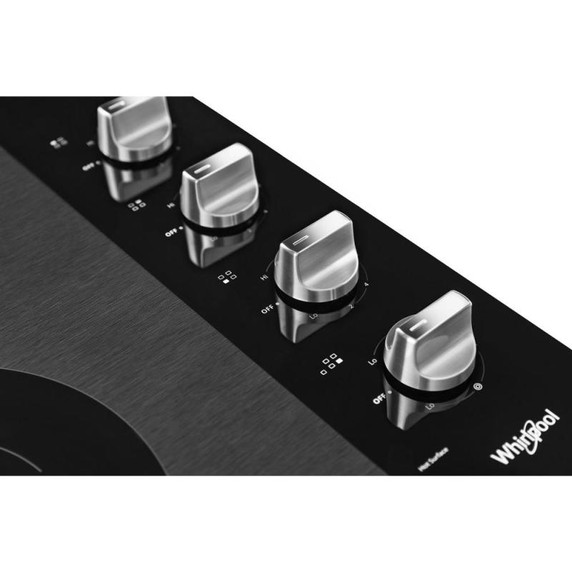

Control TypeManual
Knob TypeDishwasher Safe
Control LocationSide
Hz60
Volts240
Power Cord IncludedNo
Amps30
208v CompatibleYes
Fuel TypeElectric
Country Of OriginUSA
Optional AccessoriesW10355051B
Extended Service Plan ParentEW04IW1Y, EW04IW2Y, EW04IW4Y
Product To Product PairsUXT4130ADS, UVL5430JSS, WVW57UC0FS, WVW53UC0HV, WVU17UC0JW, WVW73UC0LS, WVW51UC0LS, UXT5530AAS, WVU17UC0JS, WVU57UC0FS, UXT5230BDS, WVU37UC0FS, WVW53UC0LS
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
Power BoostNo
Whr CooktopADA Compliant
ULYes
ADA CompliantYes
Size In30
Cooktop TypeTraditional
Combinations With OvenWOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0
Right Front Element Burner TypeDual
Cooktop ConfigurationAll Burners
Cooktop Element StyleCeran
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Left Front Element Burner TypeStandard
Left Rear Element Burner Power1800W
Left Rear Element Burner Size8in.
Right Front Element Burner Size10in./6in.
Left Front Element Burner Size6in.
Left Front Element Burner Power1200W
Right Front Element Burner Power2500W/1800W
Depth22.88"
Height5.25"
Maximum Height5.25"
Net Weight41.0 lbs.
Width30.81"
Cutout Depth20.38"
Cutout Width29.06"
Carton Depth Inch25.0
Carton Height Inch9.25
Carton Width Inch35.0
