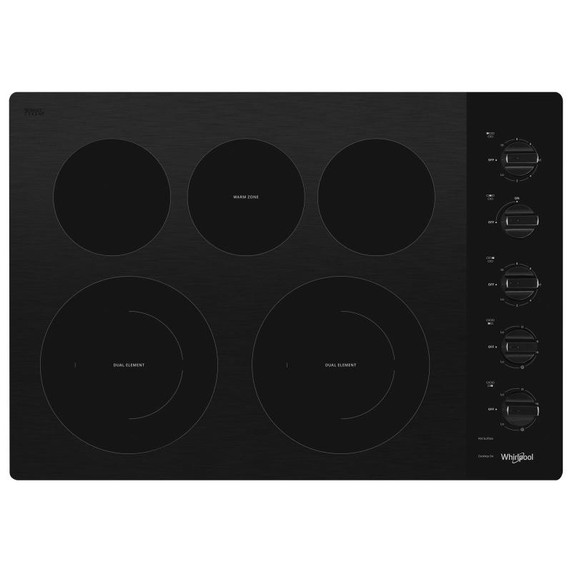

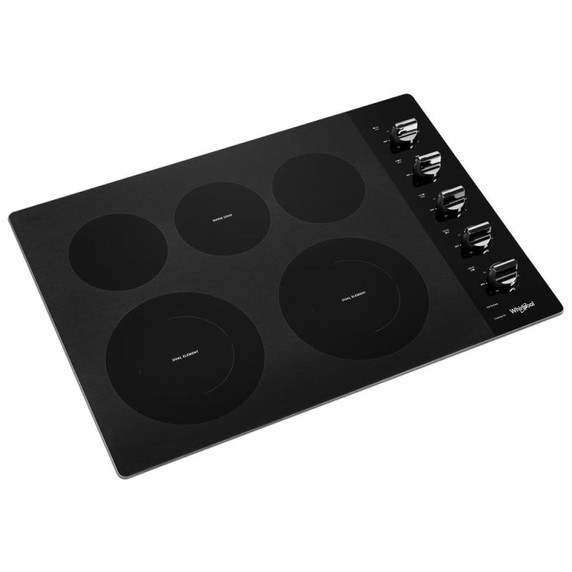

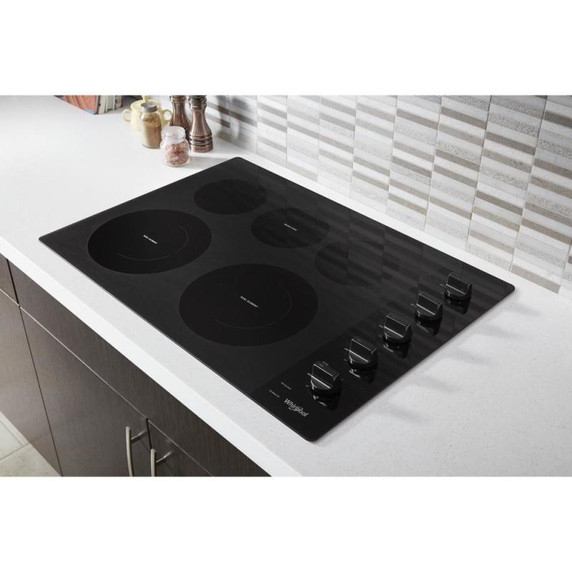

Whirlpool® 30-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements WCE77US0HB

SKU: WCE77US0HB
$1,249.99
$999.99
(You save $250.00 )
Please contact us for availability
Print:
Colour: Black
Fuel Type: Electric
Cooktop Element Style: Ceran

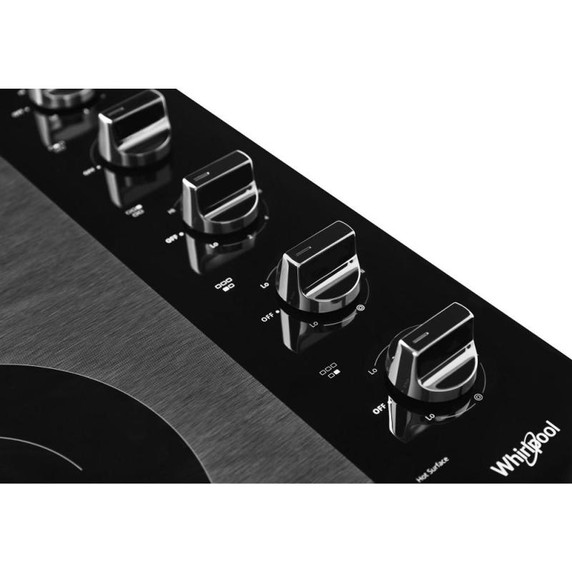

Control Location: Side

Cook all your family's favorites at once and clean up quick with a 5-burner cooktop designed to make the most of your mealtime routine. Two FlexHeat™ dual radiant elements give you more flexibility and the Warm Zone element keeps food warm while you're finishing the rest of the meal. Then, easily wipe messes off the ceramic glass surface.
Features
Top 3 Features

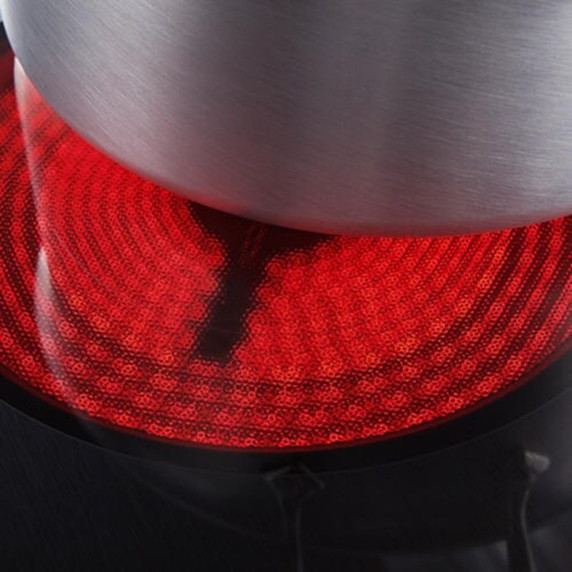

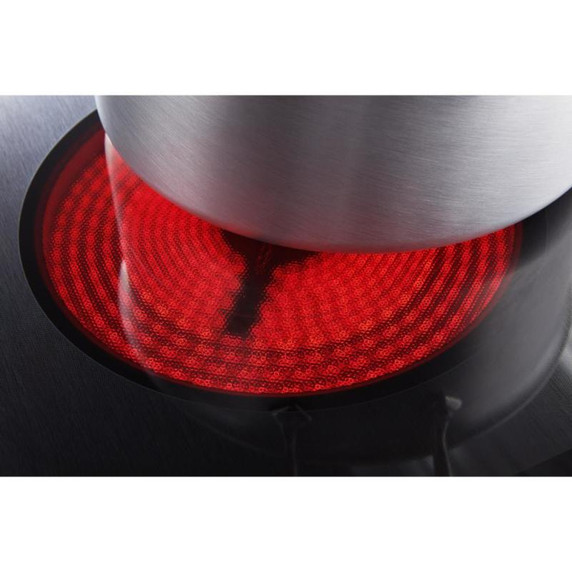

FlexHeat™ Dual Radiant ElementGet two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.

Easy-Wipe Ceramic Glass CooktopWiping up spills is simple with the easy-to-clean cooktop.

Warm Zone ElementKeep food warm while you're finishing the rest of the meal using this low-powered element.

Additional Features

5-Element CooktopProvides five independent cooking surface areas.

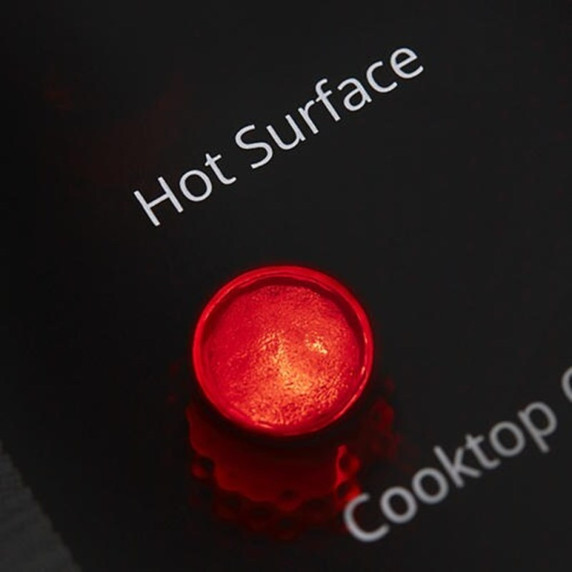

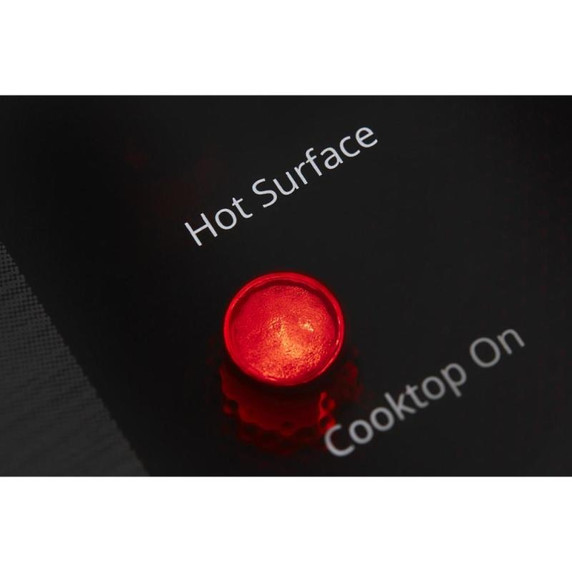

Hot Surface Indicator LightSee when the cooktop's still hot to the touch, even after it's been turned off, with a light that lets you know.

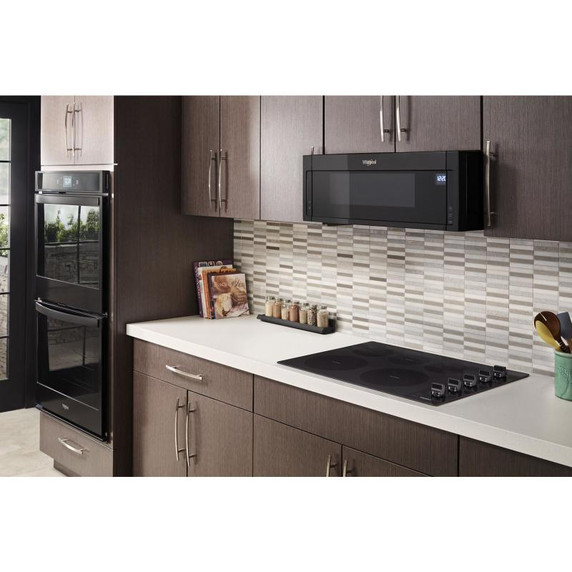

Wall Oven CompatibleInstall this cooktop to work with a wall oven or on its own for added flexibility.

6" Extra ElementCook small dishes like sides and sauces on the 6" extra element.

ADA compliantThis cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.

Specifications

Specifications

Country Of OriginUSA

Optional AccessoriesW10355051B

Extended Service Plan ParentEW04IW1Y, EW04IW4Y, EW04IW2Y

Product To Product PairsWVW73UC0LS, UXT5230BDS, WVU57UC0FS, WVU17UC0JS, WVW51UC0LS, WVW53UC0HV, WVU37UC0FS, WVW57UC0FS, UXT5530AAS, WVW53UC0LS, UVL5430JSS, WVU17UC0JW, UXT4130ADS

Electrical

Hz60

Volts240

Power Cord IncludedNo

Amps40

208v CompatibleYes

Certifications

ULYes

ADA CompliantYes

Cooktop Details

Left Front Element Burner TypeDual

Right Front Element Burner TypeDual

Cooktop ConfigurationAll Burners

Cooktop Element StyleCeran

Left Rear Element Burner Power1200W

Left Rear Element Burner Size6in.

Left Rear Element Burner TypeStandard

Right Rear Element Burner Power1200W

Right Rear Element Burner Size6in.

Right Rear Element Burner TypeStandard

Number Of Cooking Element Burners5

Center Rear Element Burner Power100W

Center Rear Element Burner TypeWarming

Right Front Element Burner Power3000W/1900W

Right Front Element Burner Size10in./6in.

Center Rear Element Burner Size6in.

Left Front Element Burner Power3000W/1900W

Left Front Element Burner Size10in./6in.

Features

Heating Element On Indicator LightYes

GriddleN/A

Hot Surface Indicator LightYes

Power Outage CompatibleNo

LP ConvertibleNo

Automatic Pan DetectionNo

Digital DisplayNo

Downdraft VentNo

Installs Over Built In OvenYes

Power BoostNo

Configuration and Overview

Fuel TypeElectric

Description

Size In30

Cooktop TypeTraditional

Combinations With OvenWOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0

Controls

Control TypeManual

Knob TypeDishwasher Safe

Control LocationSide

Refinements

Whr CooktopADA Compliant

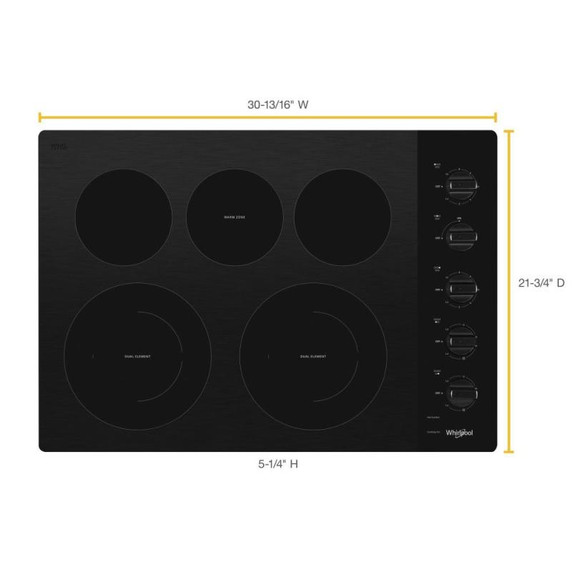

Dimensions

Depth22.88"

Height5.25"

Maximum Height5.25"

Net Weight41.0 lbs.

Width30.81"

Cutout Depth20.38"

Cutout Width29.06"

Carton Depth Inch25.0

Carton Height Inch9.25

Carton Width Inch35.0
