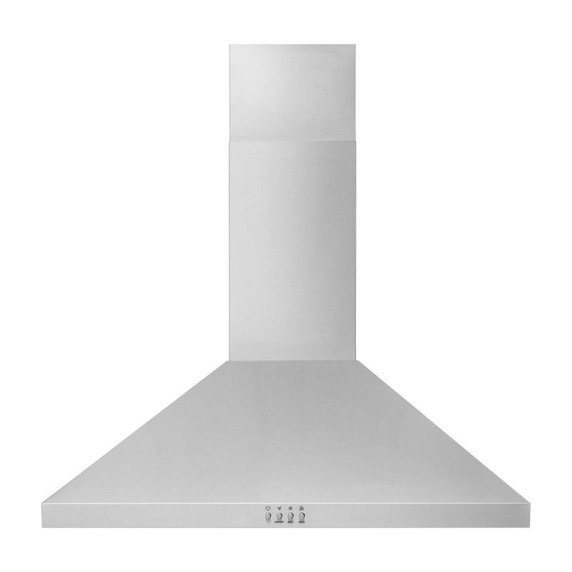

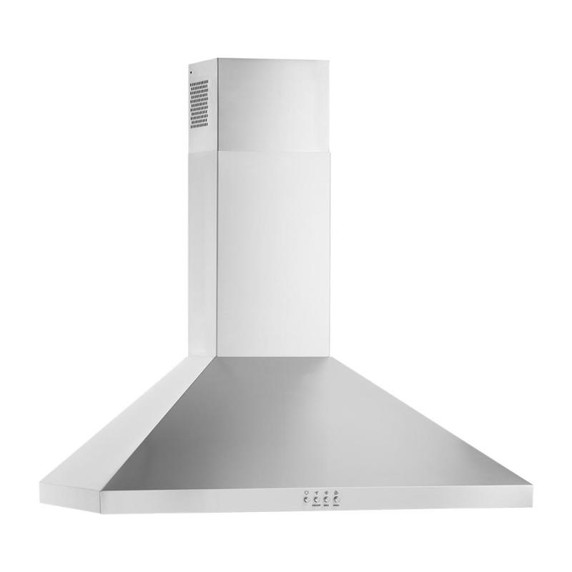

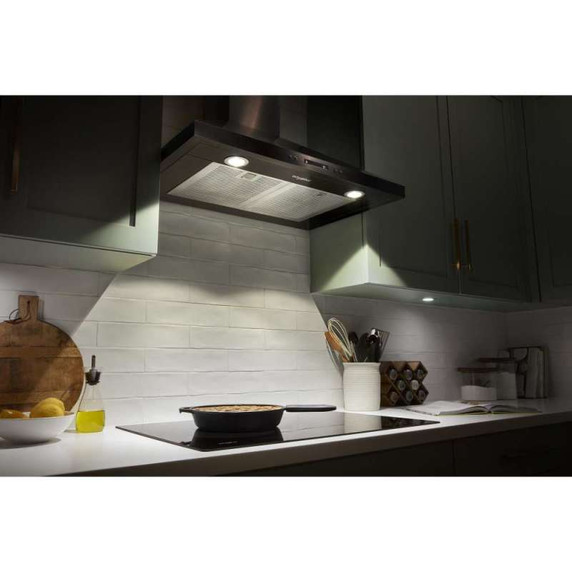

Whirlpool® ENERGY STAR® Certified 30" Chimney Wall Mount Range Hood WVW73UC0LS
Whirlpool
Whirlpool® ENERGY STAR® Certified 30" Chimney Wall Mount Range Hood WVW73UC0LS

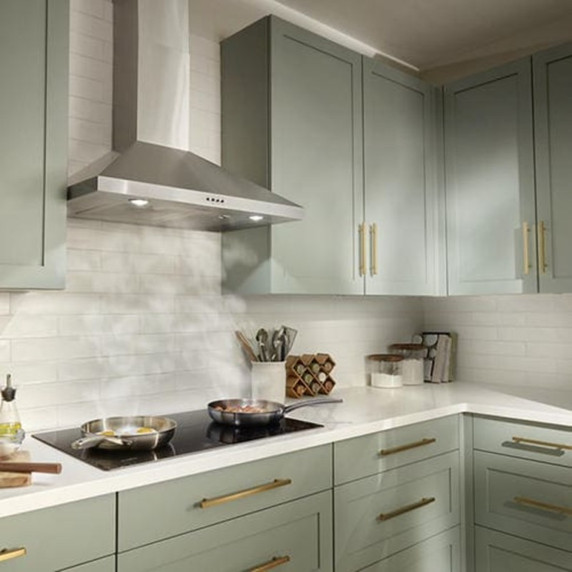

3-Speed, 300 CFM Motor ClassHelps remove smoke, odor and moisture with 300 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.

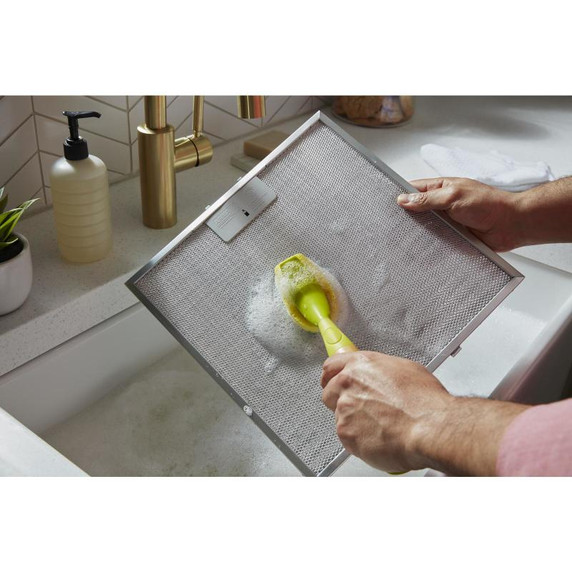

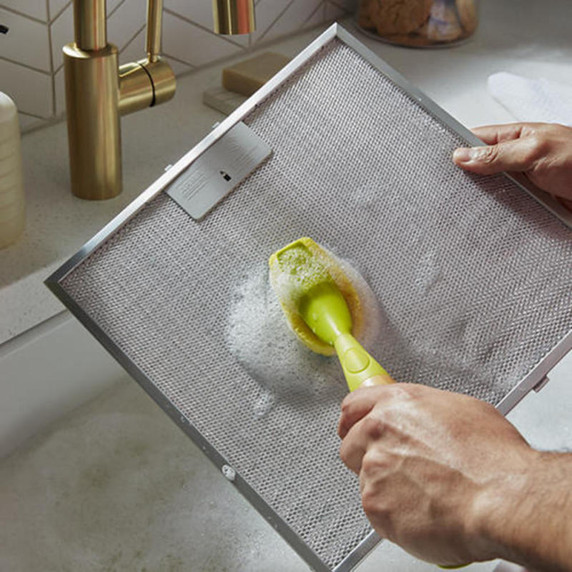

Grease FilterHelp trap unwanted grease and remove odors with a filter that unlatches from the hood so you can wash it with soap and water at the sink.
ENERGY STAR® CertifiedENERGY STAR® Certified hoods exceed government standards to help conserve natural resources and save money on your utility bills.

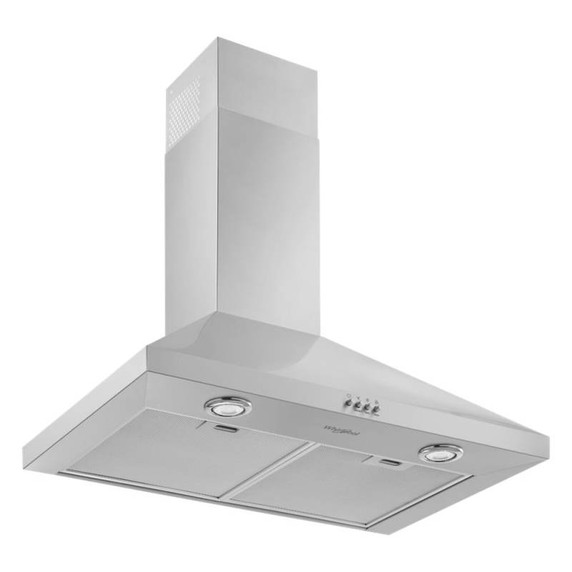

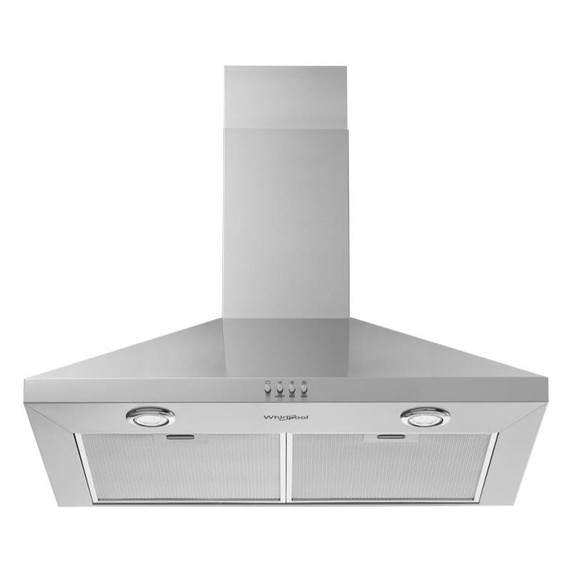

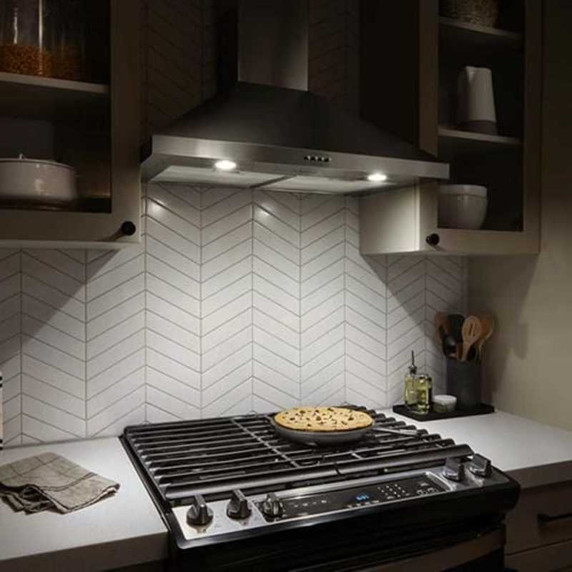

LED Task LightingEfficient LED task lighting makes it easy to see what you're cooking by casting an even and bright glow on your cooktop.
65K BTU Cooktop ThresholdHandle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.
6.5 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org)Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 6.5 Sones.

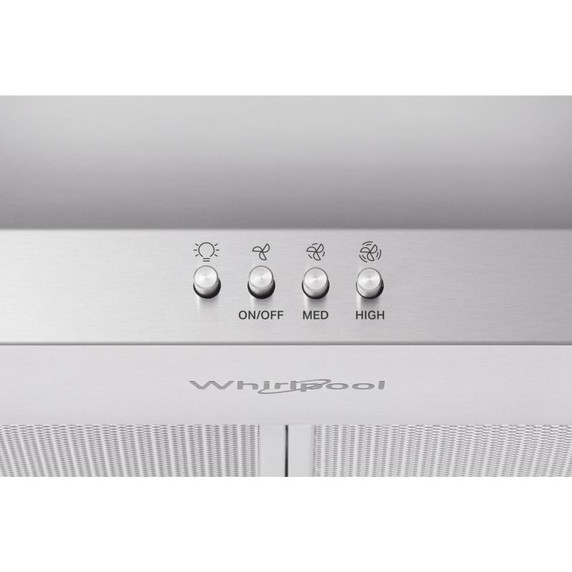

Push Button ControlsUse Push Button Controls to easily control fan speed and cooktop lighting at the push of a button.
ADA CompliantWhen the range hood is wired to operate from a dedicated standard electrical wall switch, this hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all. See install instructions for ADA compliance for more details.
Convertible Ventilation (recirculating or vented)A convertible design allows for installation that can be vented externally or internally. When venting internally a recirculation kit is required and sold separately. Air passes through charcoal filters to trap grease and odors before pushing the air back into the home.
Optional Recirculation Kit (non-vented/duct-free)This hood can be installed without needing to vent outside. Recirculation passes the air through filters to trap grease and odors before pushing the air back into the home. Recirculation kit sold separately. Part number W11548459.
6" Round Damper IncludedHelp regulate the flow of air through the chimney with the included 6" round damper (part number W10446915).
Optional Chimney Extension KitExtend chimney height for ceilings from 8'4" to 12'4" with the Optional Chimney Extension Kit. See installation instructions for details. Optional Chimney Extension Kit sold separately. Part number EXTKIT18FS.
Controls
Control TypeManual
Control LocationFront
Electrical
Volts120
Hz60
Amps1.5
Specifications
Country Of OriginMexico
Extended Service Plan ParentEW04IW2Y, EW04IW4Y, EW04IW1Y
Optional AccessoriesW10446915, W11548459, EXTKIT18FS
Product To Product PairsYWEE515S0LB, WCE55US0HS, YWEEA25H0HZ, YWEE750H0HV, WCE97US0KS, YWEE515S0LV, WEG750H0HW, WCE97US0KB, WEG750H0HB, WCE77US0HB, WEG515S0LS, YWFC315S0JS, YWGE745C0FS, YWEE750H0HW, WCI55US0JB, YWEE745H0LZ, YWEE515S0LS, YWEE750H0HB, YWFE515S0JS, YWFE745H0FS, YWEE750H0HZ, WCE77US0HS, WEGA25H0HZ, YWFC150M0JW, WCE55US0HB, WGG745S0FS, YWFC150M0JB, WEG750H0HV, WEG750H0HZ, YWFC315S0JW, WCI55US0JS, YWFE745H0FH, WEG515S0LV, YWEE515S0LW
Features
Task Light TypeLED
Task LightingYes
Night LightNo
Night Light Type
Btu Threshold65 K
Certifications
ULYes
Energy Star QualifiedYes
Description

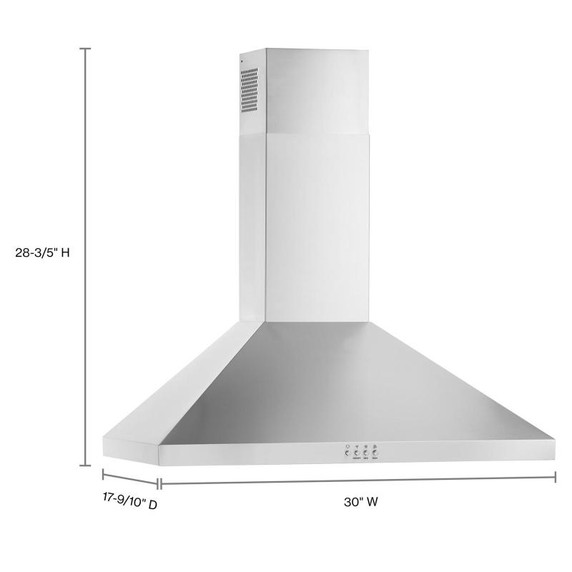

Size In30
Hood TypeWall Mount
Ventilation System
Duct DirectionVertical
Duct Outlet Size In6
Duct TypeRound
VentingExterior or Recirculating
Exhaust Vent LocationTop
Auto FunctionNo
Blower MotorYes, Included
Cfm Motor Class377
FiltersAluminum Mesh Filter
Sound Max Speed Sones6.5
Carton Depth35.56"
Carton Height64.77"
Depth45.47"
Gross Weight16.33 lbs.
Maximum Height107.44"
Minimum Height72.64"
Width76.2"
Carton Width34.0"
