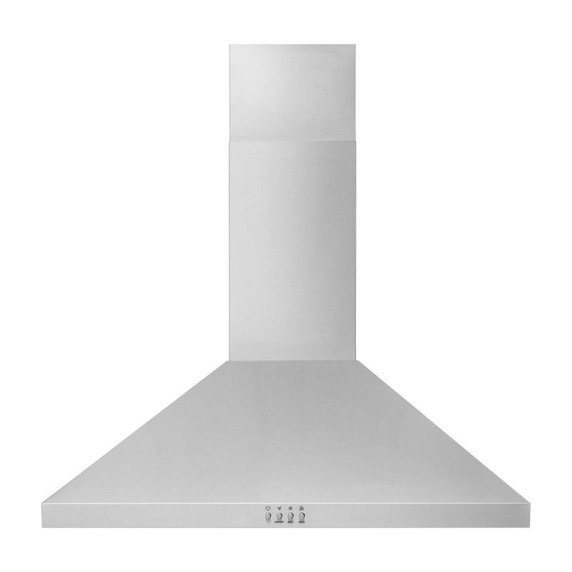

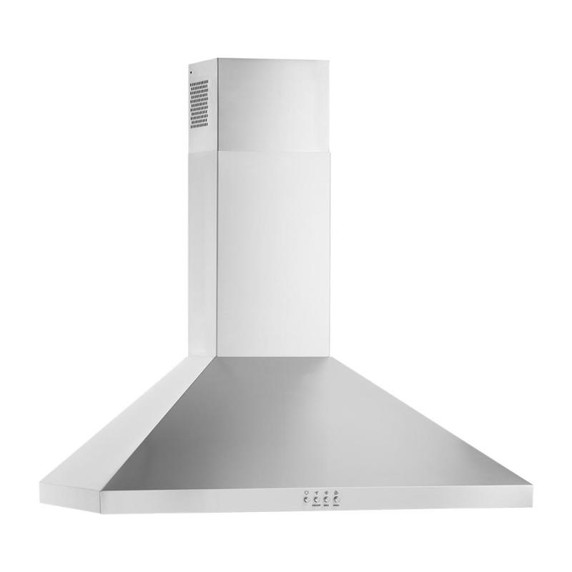

Whirlpool® Hotte murale à cache-conduit certifiée ENERGY STAR® - 30 po WVW73UC0LS

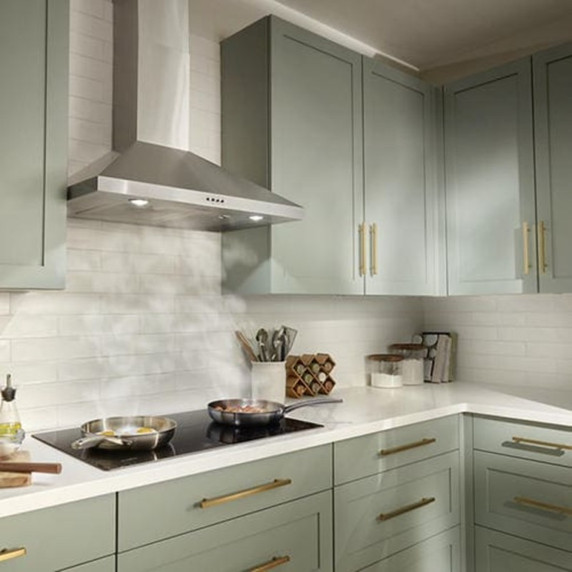

3-Speed, 300 CFM Motor ClassHelps remove smoke, odor and moisture with 300 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.

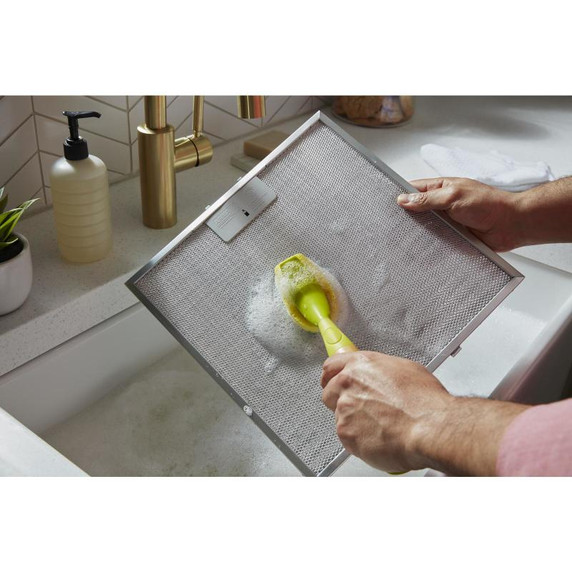

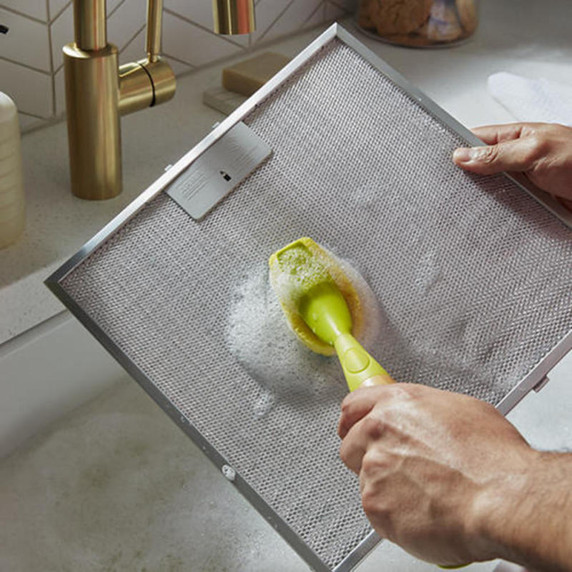

Grease FilterHelp trap unwanted grease and remove odors with a filter that unlatches from the hood so you can wash it with soap and water at the sink.
ENERGY STAR® CertifiedENERGY STAR® Certified hoods exceed government standards to help conserve natural resources and save money on your utility bills.

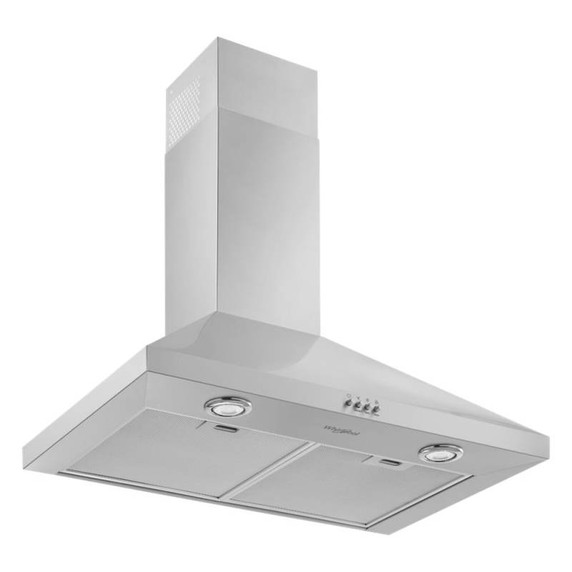

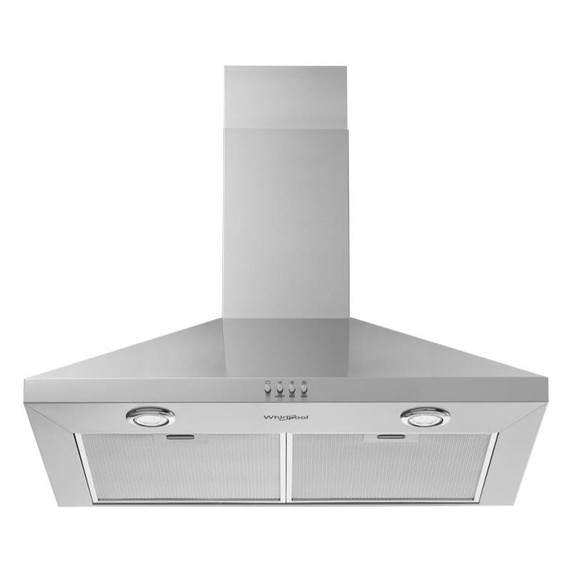

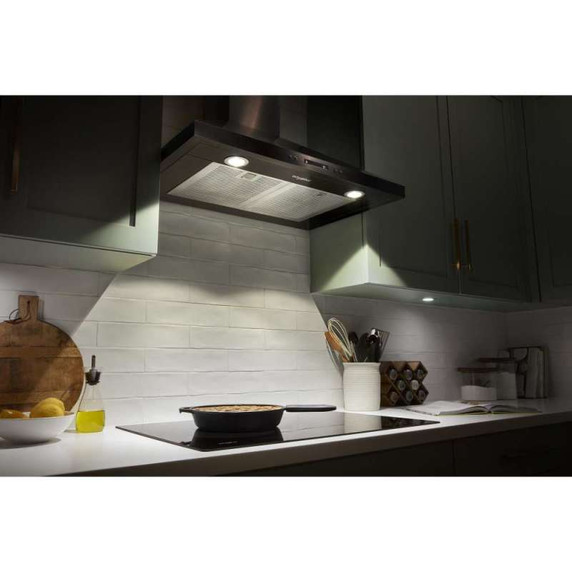

LED Task LightingEfficient LED task lighting makes it easy to see what you're cooking by casting an even and bright glow on your cooktop.

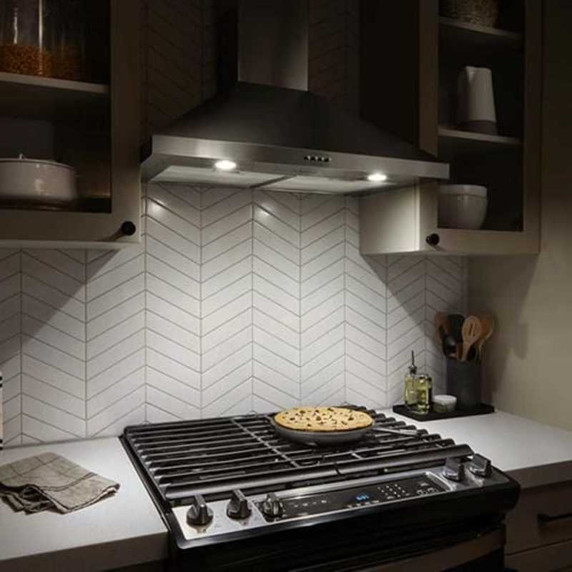

65K BTU Cooktop ThresholdHandle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.
6.5 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org)Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 6.5 Sones.

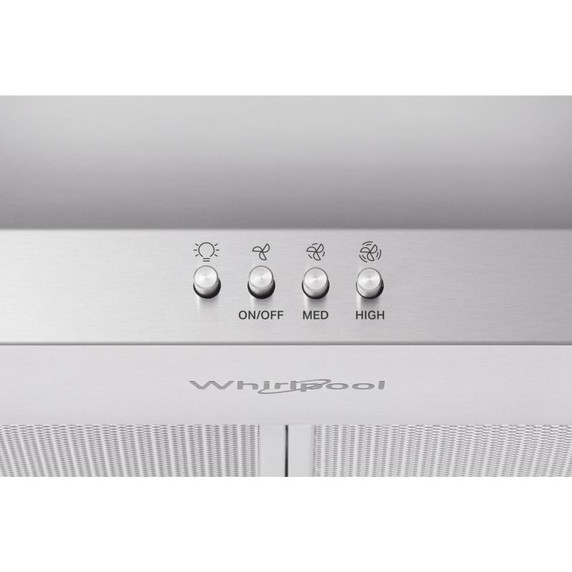

Push Button ControlsUse Push Button Controls to easily control fan speed and cooktop lighting at the push of a button.
ADA CompliantWhen the range hood is wired to operate from a dedicated standard electrical wall switch, this hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all. See install instructions for ADA compliance for more details.
Convertible Ventilation (recirculating or vented)A convertible design allows for installation that can be vented externally or internally. When venting internally a recirculation kit is required and sold separately. Air passes through charcoal filters to trap grease and odors before pushing the air back into the home.
Optional Recirculation Kit (non-vented/duct-free)This hood can be installed without needing to vent outside. Recirculation passes the air through filters to trap grease and odors before pushing the air back into the home. Recirculation kit sold separately. Part number W11548459.
6" Round Damper IncludedHelp regulate the flow of air through the chimney with the included 6" round damper (part number W10446915).
Optional Chimney Extension KitExtend chimney height for ceilings from 8'4" to 12'4" with the Optional Chimney Extension Kit. See installation instructions for details. Optional Chimney Extension Kit sold separately. Part number EXTKIT18FS.
Electrical
Volts120
Hz60
Amps1.5
Description
Size In30
Hood TypeHotte à montage mural
Specifications
Country Of OriginMexico
Optional AccessoriesEXTKIT18FS, W10446915, W11548459
Extended Service Plan ParentEW04IW1Y, EW04IW2Y, EW04IW4Y
Product To Product PairsWCE97US0KB, WCE77US0HB, YWFC315S0JS, YWEE750H0HW, YWEE745H0LZ, WCI55US0JS, YWFE745H0FH, WEG515S0LV, YWEE515S0LW, YWEEA25H0HZ, YWEE515S0LB, WCE97US0KS, WCE55US0HS, WEG750H0HW, WEG745H0LZ, WEG750H0HB, YWEE750H0HV, WEG515S0LS, YWEE515S0LV, YWGE745C0FS, WCI55US0JB, YWEE515S0LS, YWEE750H0HB, YWFE515S0JS, YWFE745H0FS, YWEE750H0HZ, WCE77US0HS, WEGA25H0HZ, YWFC150M0JW, WCE55US0HB, WGG745S0FS, YWFC150M0JB, WEG750H0HV, WEG750H0HZ, YWFC315S0JW
Ventilation System
Duct DirectionVertical
Duct Outlet Size In6
Cfm Motor Class377
Sound Max Speed Sones6.5
Duct TypeRond
VentingExtérieur ou à recirculation d'air
Auto FunctionNon
Blower MotorOui, inclus
FiltersFiltre à mailles en aluminium
Features
Task Light TypeLED
Night Light Type
Btu Threshold65 K
Task LightingOui
Night LightNon
Certifications
ULOui
Energy Star QualifiedOui
Controls
Control LocationAvant
Control TypeManuel

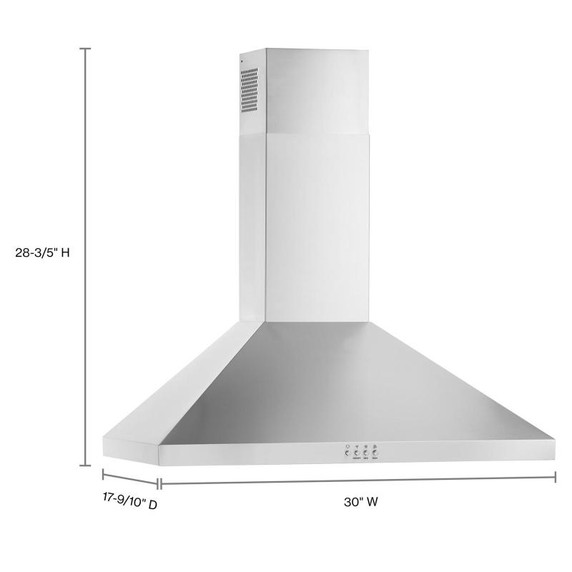

Carton Depth35.56"
Carton Height64.77"
Depth45.47"
Gross Weight16.33 lbs.
Maximum Height107.44"
Minimum Height72.64"
Width76.2"
Carton Width34.0"
